Interconnection Technologies
Innovative Grounding and Shielding Solutions
Interconnection Technologies specializes in pioneering cutting-edge technology designed to meet the critical needs of safe and efficient grounding and shielding.
We began with connectivity solutions for Variable Frequency Drive Power Drive Systems. Today, our portfolio of patented solutions address the key safety and reliability concerns highlighted by leading drive, motor, cable manufacturers, and system integrators.
Embracing the Future of Power Systems
Gone are the days when power systems were limited to 120 or 480 volts at 60 Hertz. However, it's easy to take this progress for granted.
In the manufacturing world, it's not just about three-phase, 480V systems anymore. Imagine being on the factory floor and looking up at an old air mover on the roof, running at a single speed, or if you're lucky, equipped with mechanical gears for three-speed control. That’s a relic of the past.
Today's manufacturing landscape is dominated by Variable Frequency Drives (VFDs), which bring a vast range of electrical capabilities. Voltage can range from 100V to 690V, current from a few amps to several hundred, and frequencies from zero to four hundred Hertz in mere microseconds. Power ratings span from a few hundred watts to several megawatts.
The Challenges of Modern VFD Systems
While VFDs offer incredible versatility, they also introduce challenges:
- Harmonics and Noise: VFDs can introduce unwanted harmonics and noise into power systems, affecting the performance of other equipment and reducing operator safety.
- Higher Initial Costs: The installation cost of VFD systems is higher than legacy systems.
- Expertise Requirement: Design, installation, operations, and maintenance require specialized knowledge.
- Compatibility Issues: Existing control systems often need modification before integration.
Some designers and operators have pieced together mitigation techniques to manage these side effects. However, as the saying goes, “a chain is only as strong as its weakest link,” and the weak link is often found in the current electrical components.
We’ve addressed this exact issue with our innovative solutions, ensuring safety, efficiency, and reliability in grounding and shielding VFD power cables.
Our Solution: A complete purpose-designed VFD Interconnection System.
Interconnection Technologies, LLC (ITC™) holds a portfolio of patents and patent pending applications for electrical components designed specifically to address the issues associated with VFD-derived power: EMI/ RFI reflected waves and common mode current.
These components, when combined as a system, maximize the benefits of VFD drives while mitigating the unwanted side effects in an easy-to-install purpose-designed interconnection system.
Our VFD Interconnection System (VIS™) is a complete VFD Interconnection System that complies with the requirements of EN IEC: 61800-3:2018 - EMC compliance for the implementation of Power Drive Systems.
The VIS™ System: Comprehensive Grounding and Shielding
The VIS™ System revolutionizes the way electrical components are grounded and shielded. Now, previously unshielded components can be securely grounded from the source (the drive) to the motor and back to the source. This system provides 360-degree shielding and ensures uniform electrical performance, current, voltage rating, and surface transfer impedance throughout the entire system.
Key Features:
- Complete Grounding and Shielding: Every component in the VIS™ System works together to provide consistent grounding and shielding values.
- Versatile Components: The system includes multi and single-conductor VFD interconnection components, accommodating all VFD cable types, including symmetrical, four-core single ground, and all armored and sheathed styles.
By utilizing the VIS™ System, you can achieve unmatched safety, efficiency, and reliability in your electrical setups.
VIS™ System: Setting New Standards in Electrical Safety
The VIS™ System is engineered to incorporate military standards and industry specifications, ensuring top-notch performance. Designed to meet EMC standards, these components are suitable for both hazardous and non-hazardous locations, including ATEX, IECEx, and North American applications.
Key Advantages:
- Compliance and Safety: Meets and exceeds NEMA and IEC recommendations for motor bearing current protection.
- Versatility: Suitable for various applications, ensuring safety in demanding environments.

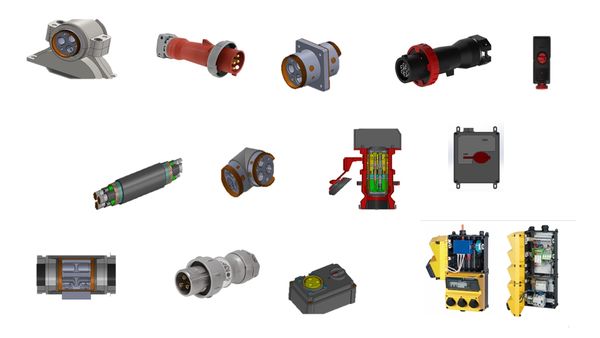

ITC’s Patents and Patent Pending Applications
1. Metallic Electrical Connectors (Plugs and Sockets).
2. Non-Metallic Electrical Connectors (Plugs and Sockets).
3. VFD Interface System
4. Switched and Switched Interlocked Disconnect Switches and Receptacle Assemblies
5. Cable Splice System
6. Terminal Block System
7. Enclosures Metallic and Non-Metallic
8. Cable Termination System
9. VFD Cables
10. Motor Grounding System
11. VIS Soft™
Partnership Opportunities
We are seeking manufacturers to license the technologies we have developed for integration into their existing product lines, and/or development of new product lines and brands.
Our Licensing Package:
Patent Details: Description of our technology, its unique features, and how it solves a problem.
Business Case: Market demand, potential revenue, and competitive advantages.
Licensing Terms: Terms of the license (e.g., exclusivity, duration, royalties).
Demo or Prototype: Demonstrate our technology's functionality, program management and Sales & marketing assistance.
